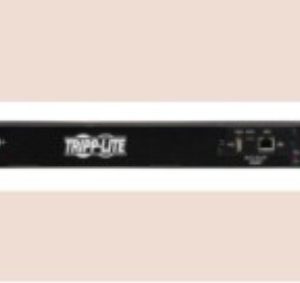

METERED AUTO TRANSFER SWITCH (ATS) ONLINE POWER DISTRIBUTION UNIT
₦475,000.00
TRIPP LITE METERED ATS PDU CONNECTS TO SEPARATE PRIMARY AND SECONDARY POWER SOURCES, ALLOWING FOR AUTOMATIC TRANSFER OF POWER SOURCE. FOR USE IN DATA CENTRES OR SERVER ROOMS. 20A, 10 OUTLETS ( 8 X C13 & 2 X C19), 200-240V, 2 X C20, 12 FT CORD, 1U RACK-MOUNT
..TRIPP LITE METERED AUTO TRANSFER SWITCH (ATS) PDU CONNECTS TO SEPARATE PRIMARY AND SECONDARY POWER SOURCES, ALLOWING FOR AUTOMATIC TRANSFER OF POWER SOURCE. FOR USE IN DATA CENTRES OR SERVER ROOMS. 20A, 10 OUTLETS ( 8 X C13 & 2 X C19), 200-240V, 2 X C20, 12 FT CORD, 1U RACK-MOUNT
- Single-phase 16A 200-240V Metered Auto Transfer Switch (ATS) / ATS PDU
- Enables redundant-power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 C20 inputs; 8 C13 and 2 C19 outlets
Features of the Metered Auto Transfer Switch (ATS)
- 200-240V 20A Automatic Transfer Switch (ATS) / Local Metered PDU (Agency de-rated to 16A continuous)
- Provides a redundant power option for critical networking equipment with a single input power cord
- 2 digit display reports output power consumption in amps
- 1U horizontal rackmount form factor; 14.8 in. / 37.6 cm depth
- 10 outlets (8 C13, 2 C19)
- Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices
- Set of two C20 inlets support connection to separate PRIMARY and SECONDARY power sources
- Two 12-ft. / 3.6m C19 to C20 power cables included
- ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
- ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
- Advanced ATS configurations utilizing separate mains circuits, backup generators, and even separate out of phase utility power grid feeds are fully supported
- On-board ATS processor constantly evaluates power quality on both inputs to prevent the transfer to the secondary source when unavailable or of lower quality than the primary source
- Super-fast switchover between primary and secondary power sources occurs in 2-5 milliseconds
- Built-in card slot supports optional SNMPWEBCARD or WEBCARDLX for a permanent upgrade to a switched & monitored PDU system
- Outlets are factory programmed for sequential turn-on at 250-millisecond intervals when the PDU is first energized. This is to prevent inrush-related equipment interaction on startup
- Front panel LEDs confirm power availability on both input lines
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
| Weight | 8 kg |
|---|
