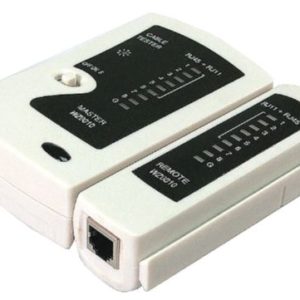

MULTINETWORK CABLE TESTER (STANDARD)

Multinetwork Cable Tester tests the functionality of network cables with twisted pair straight and crossover wire configurations. Will test RJ11, RJ12, and RJ45 wire pairs. With the associated remote unit a complete line can be tested after installation. Easy to use, display via LEDs for testing of RJ45, RJ12, and RJ11 according to the applicable standards. The unit checks all pairs, shielding, and connections.

Resolving network connectivity issues is often a mere process of elimination. This network cable tester helps determine whether or not a network cable is the source of the problem.

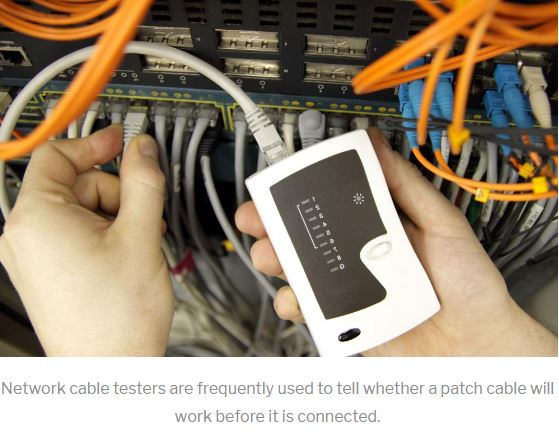

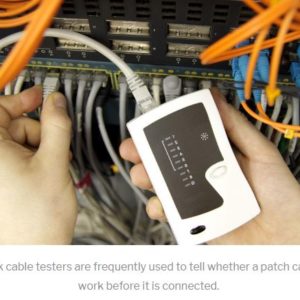

To use the Multinetwork Cable Tester, connect one end of the network cable to the “Master” controller and the other end to the “Remote”. Turn the switch found on the Master controller to the “On” position to begin testing. If the network cable is working properly, the Master controller and the Remote will illuminate sequentially with green lights. When testing cables with RJ-11 connectors, lights 1 through 6 should illuminate. When testing cables with RJ-45 connectors, lights 1 through 8 should illuminate.

Features/Specs:

• Extremely easy to use and understand
• Sequence from 1 to G
• Master tester: 1-2-3-4-5-6-7-8-G
• Remote tester: 1-4-3-2-5-6-7-8-G
• Connectors on remote: RJ11 and RJ45
• Connectors on the main tester: RJ11 and RJ45
• Network Cable Tester can determine the wrong connection, short circuit, and open circuit
• Built-in power switch for saving power
• 9 LED lights to indicate wiring connection on both remote and master unit
• The transmitter and receiver snap together for easy transportation or patch cable testing
• The transmitter and receiver can be separated to test installed cabling or patch cables
• A high-quality soft leather case provides more secure protection

Accessories included:

– Main Cable Tester
– Remote Cable Tester

– Black Leather Bag
– User Manual
